32″ LCD Barricade

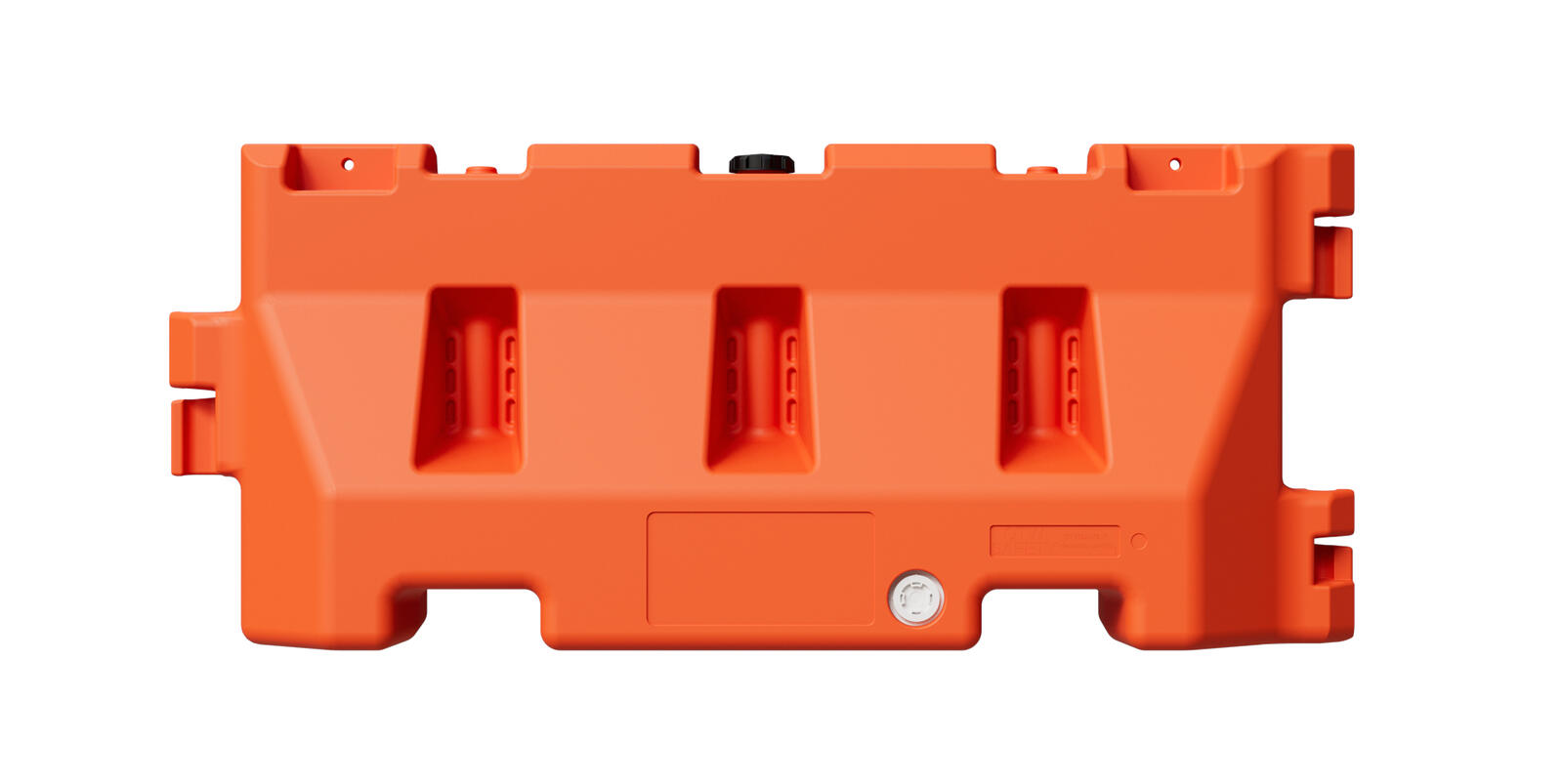

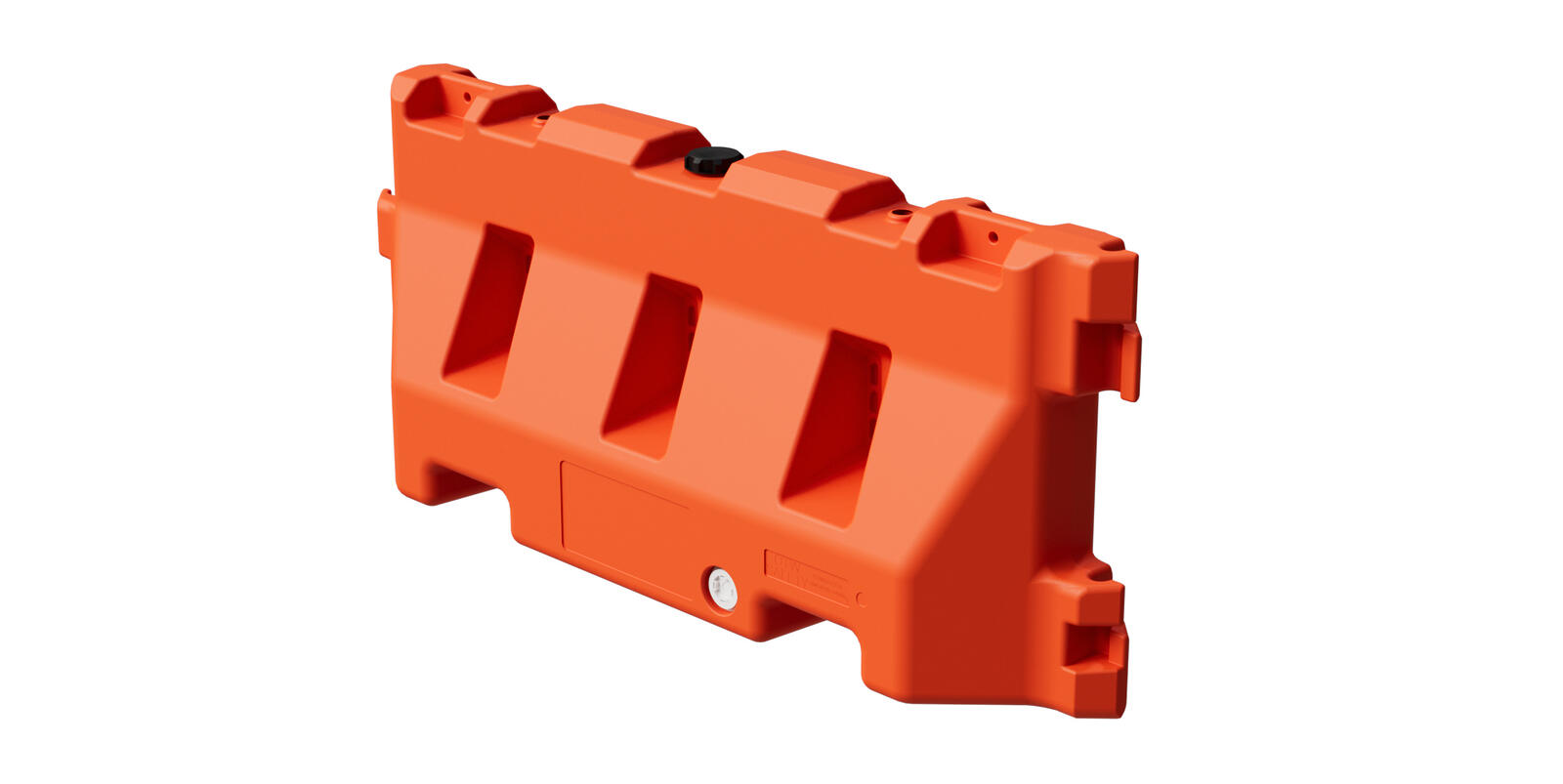

The OTW 32×72 barricade brings modern design, durability, and advanced functionality to the 32-inch water-filled barricade category. Molded in the USA from UV-stabilized HDPE or MDPE, each barricade weighs just 65 pounds empty for easy placement by hand and can be water-ballasted for added stability. Its integrated interlocking system connects units without additional hardware, allowing barricades to form continuous lines, 90° corners, curves, or complete site enclosures. Designed for versatile jobsite use, the OTW 32×72 helps establish work zone perimeters, separate pedestrians from equipment, channelize low-speed traffic, and clearly identify hazards.

Looking for an estimate on your project? Request a Same-Business-Day Quote and lock in guaranteed pricing for 60 days.

Description

Introducing the new OTW 32×72 Barricade

Built with an impressive combination of performance, functionality, durability, and modern design, this barricade was created to raise the standard for the 32-inch category.

But the biggest upgrade goes beyond the product itself. With nationwide availability, the OTW 32×72 is positioned to be where you need it, when you need it, helping crews stay prepared, keep projects moving, and get the right barricades on site without unnecessary delays. We’re excited to introduce a product that not only performs better in the field, but allows us to better support our customers.

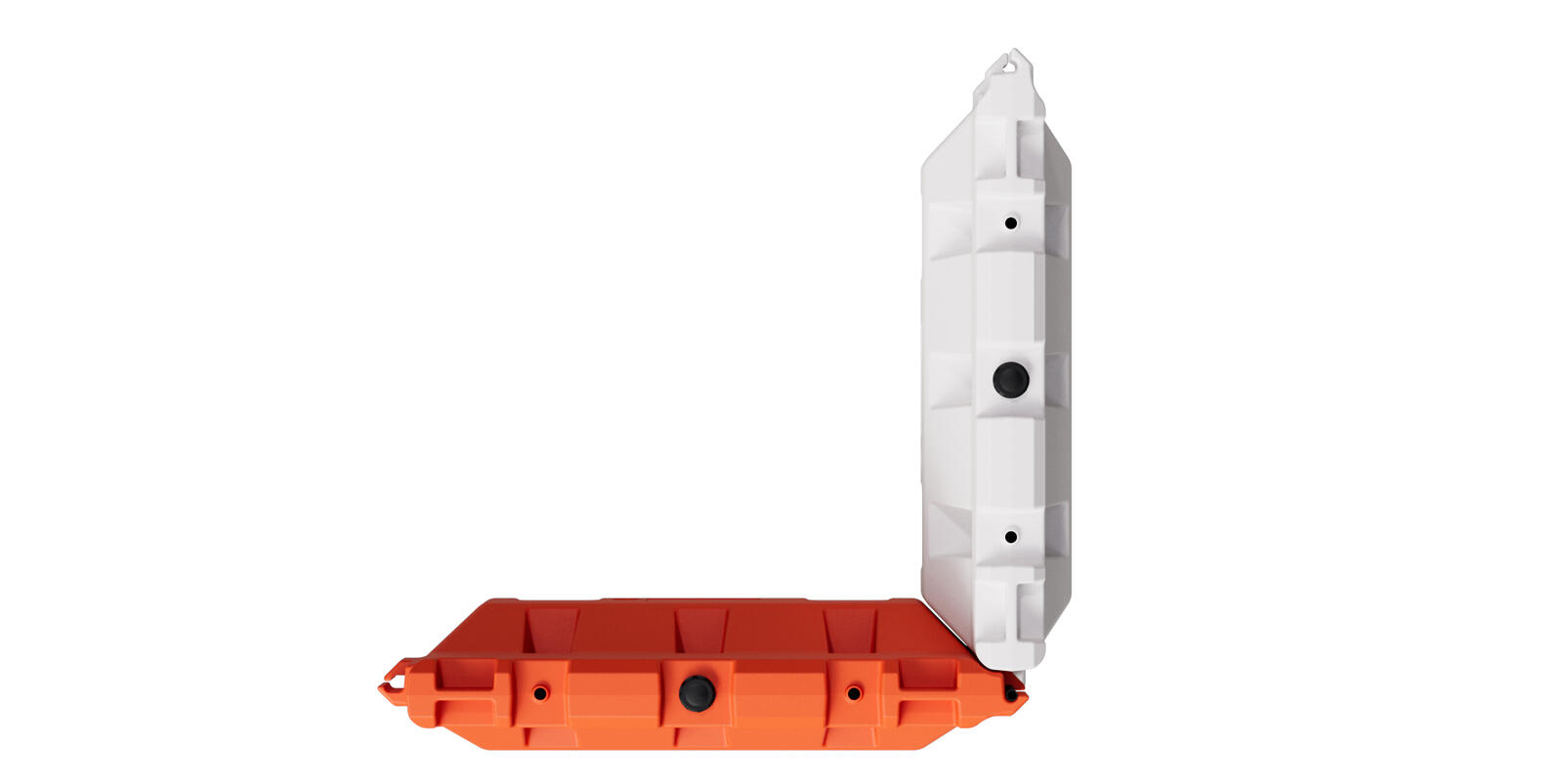

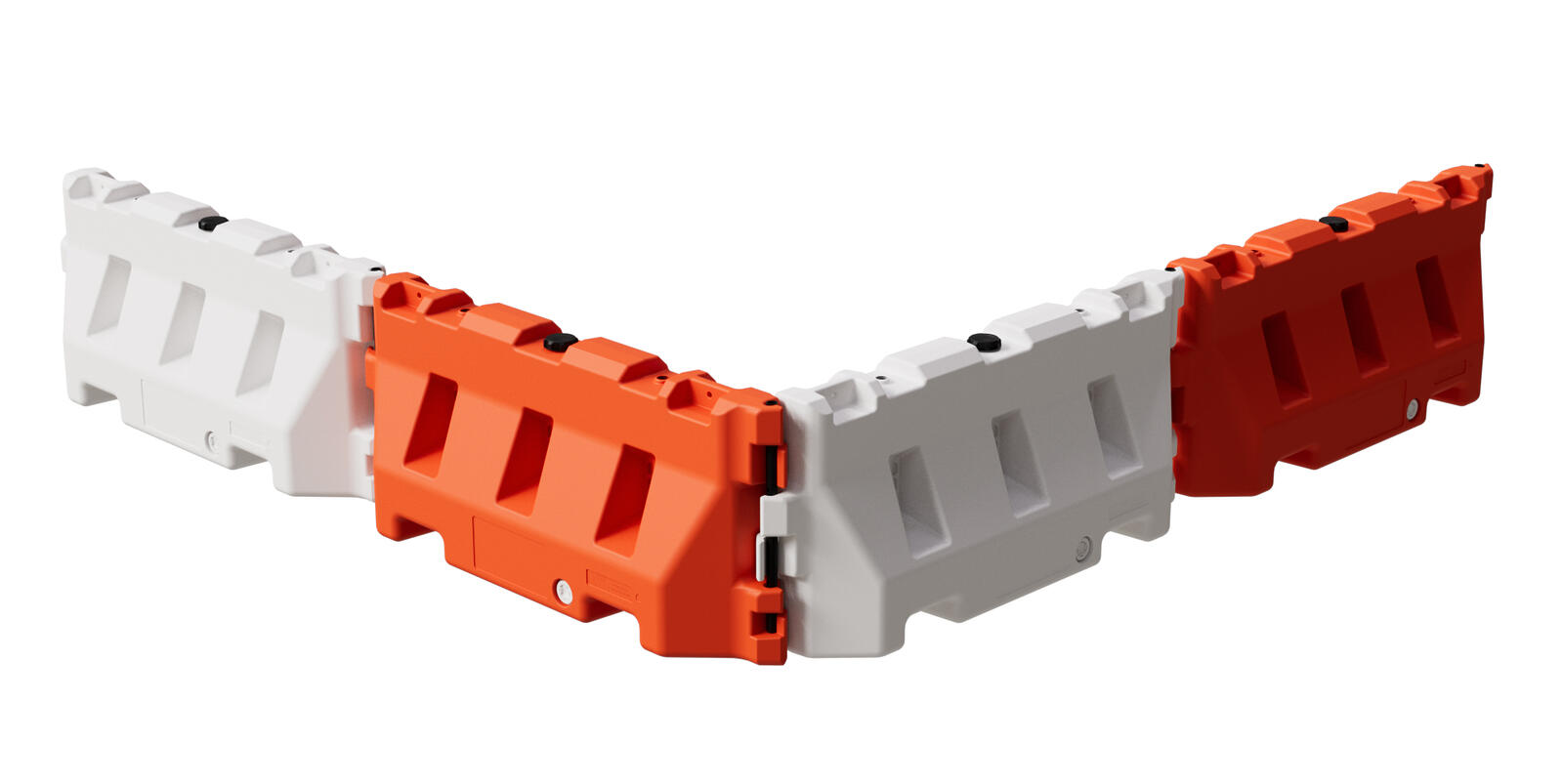

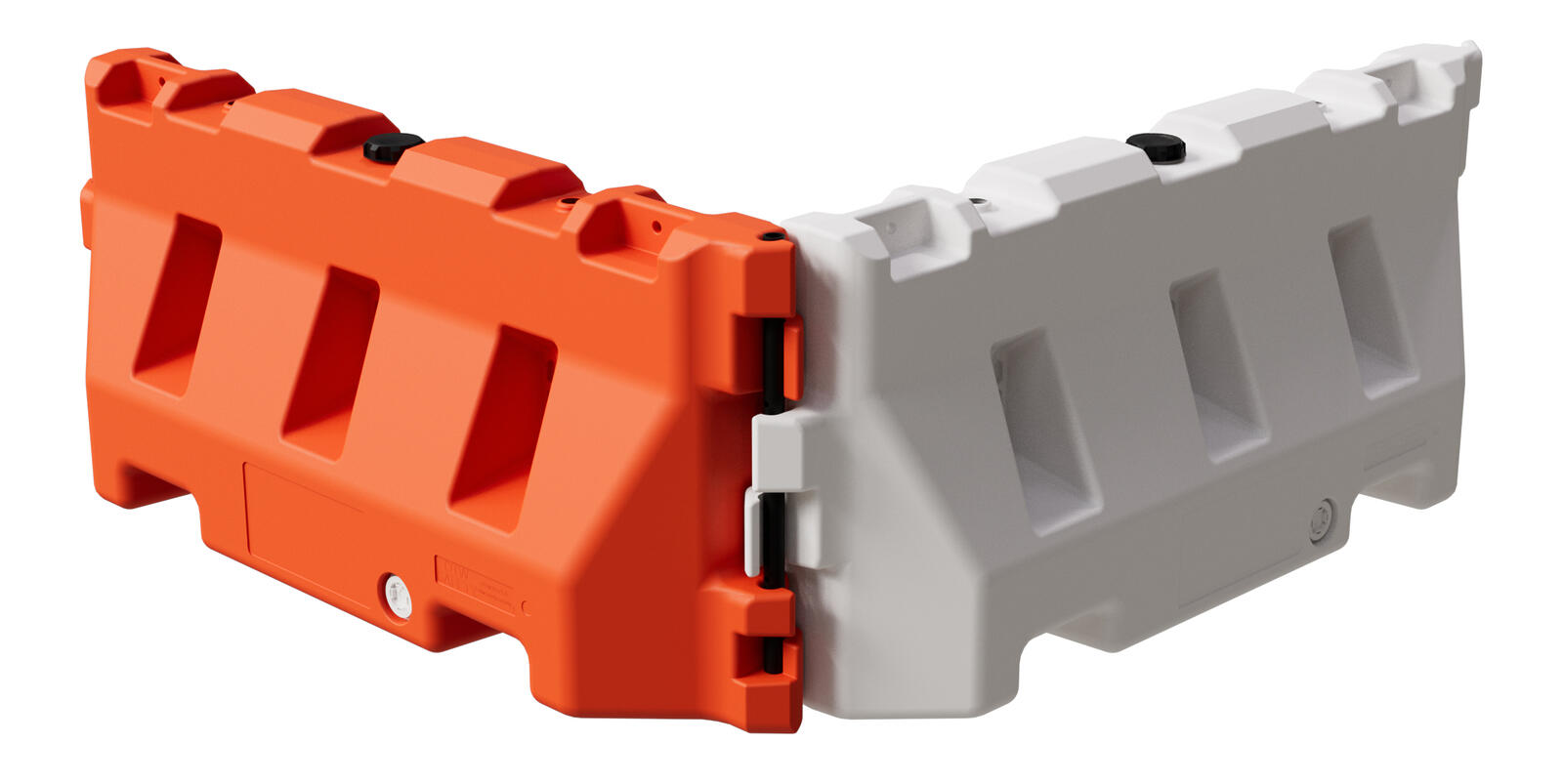

Turns 90 Degrees

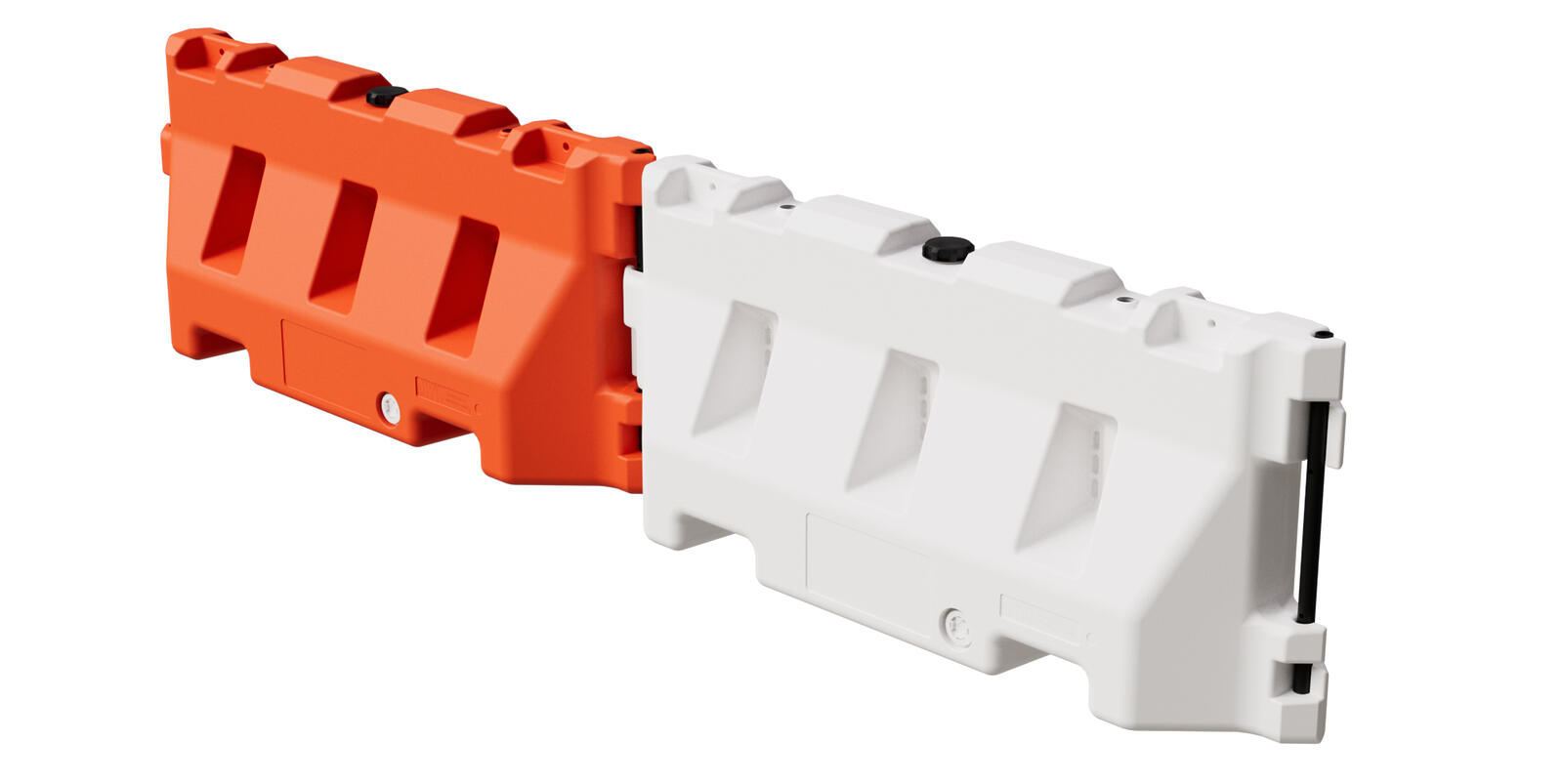

While other barricade systems require expensive attachments or dedicated corner pieces to create a 90° turn, the OTW 32×72 does it with just two barricades and the standard interlocking pin. Any two units can swing through a full 180° range of motion, making it easy to create 90° corners, curves, continuous lines, and complete site enclosures without additional hardware.

The OTW 32×72 was thoughtfully designed to perform as well as it looks. Its streamlined design is simple, versatile, and compatible with a range of accessories, giving crews the flexibility to configure each setup around the needs of the jobsite.

Safety and compliance were also central to the redesign. By creating continuous, gap-free, high-visibility barricade lines, the OTW 32×72 helps crews support OSHA guidance and MUTCD requirements while creating clearly defined work zones.

FEATURES & BENEFITS

Forms 90° corners with included interlocking pin
One interlocking pin connects with no tools
Modern aesthetic design
UV-resistant for impact strength, color retention, and repeated-use durability
Compatible with OTW’s Barricade Fence Panel system
Top center fill point with two easily accessible drain plugs
65 lbs empty, one-person handling
One-year manufacturing defect warranty

OPTIONAL ACCESSORIES & CUSTOMIZATION

Mold-in graphics for custom barricade branding
Holds reflective tape or sheeting for the flat side faces

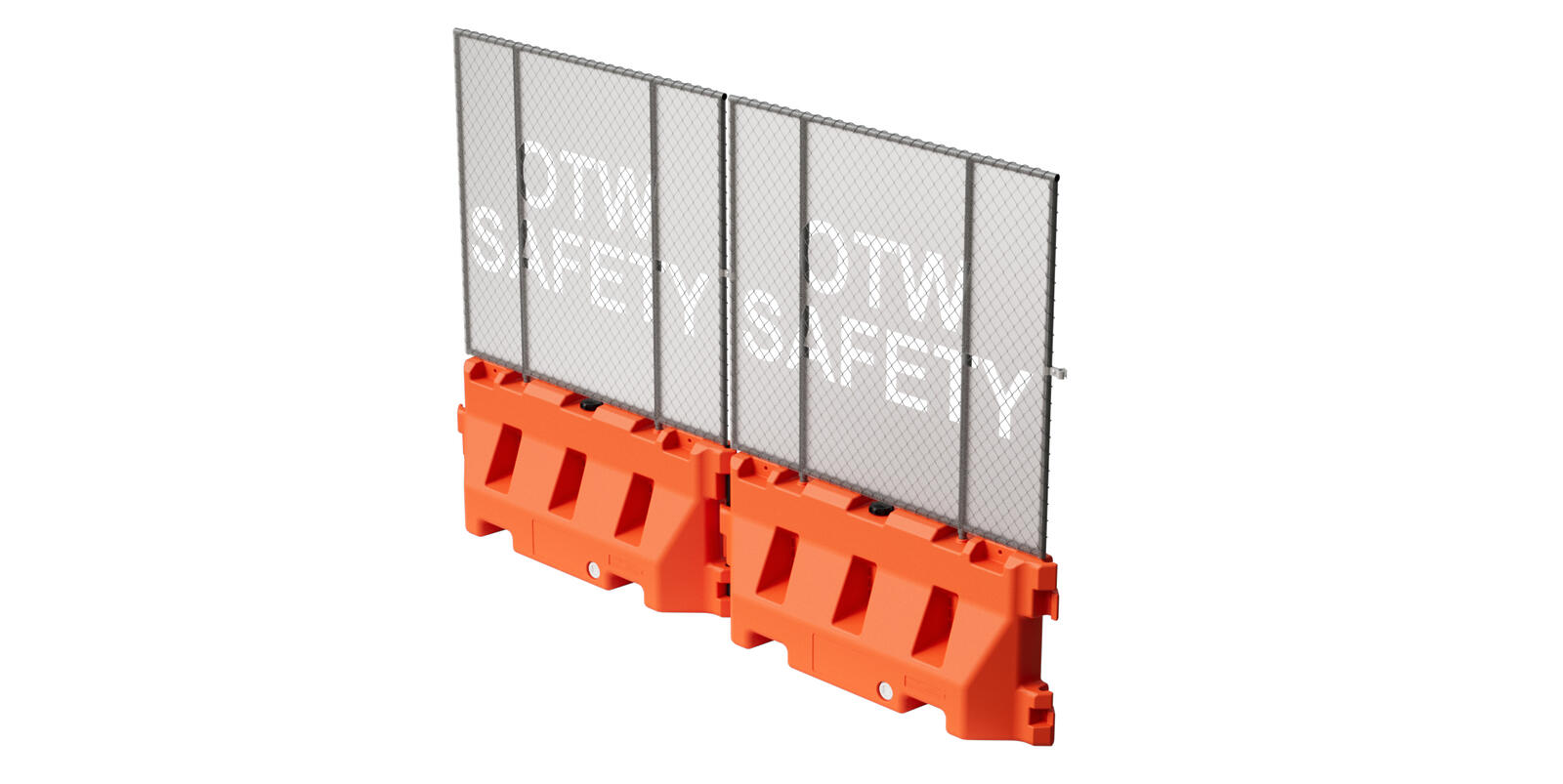

Pairs with OTW Barricade Fence Panel
Screen-printed branding on Barricade Fence Panel privacy mesh
Accepts OTW Vehicle & Pedestrian Gate Adapter Kit
Add up to two OTW Type A/C Bi-Directional Barricade Lights

Applications

Site perimeter and security. Construction site perimeters, temporary and semi-permanent; laydown yards and staging areas; restricted and equipment areas; secure private enclosures with fence panels; phased campus and data center builds; substation and utility yard perimeters. The 90° corner capability means one product encloses a site completely – corners, gates, and straight runs from the same inventory.

Traffic and equipment channelization. Low-speed construction zones and lane delineation; temporary internal haul routes; channelized lanes for forklifts, trucks, and equipment; site entrances and access points; parking control and vehicle staging. OSHA’s powered industrial truck guidance calls for separating pedestrians from lift-truck traffic with walkways and protective barriers – a continuous, interlocked line of 820-pound ballasted units draws that separation in a way cones and drums cannot.

Pedestrian safety. Pedestrian channelization and separation from work areas; walkway routing around active work; crowd management and queue control; stadium, campus, and venue perimeters. Where longitudinal channelizing devices are used for pedestrian traffic control, the MUTCD requires them to be interlocked, with no gaps that allow pedestrians to stray from the channelized path – the OTW 32x72s pinned connection forms that continuous, gap-free line by design.

Other. Hazard identification; utility and infrastructure work; emergency and disaster staging; film and production site control.

Specifications

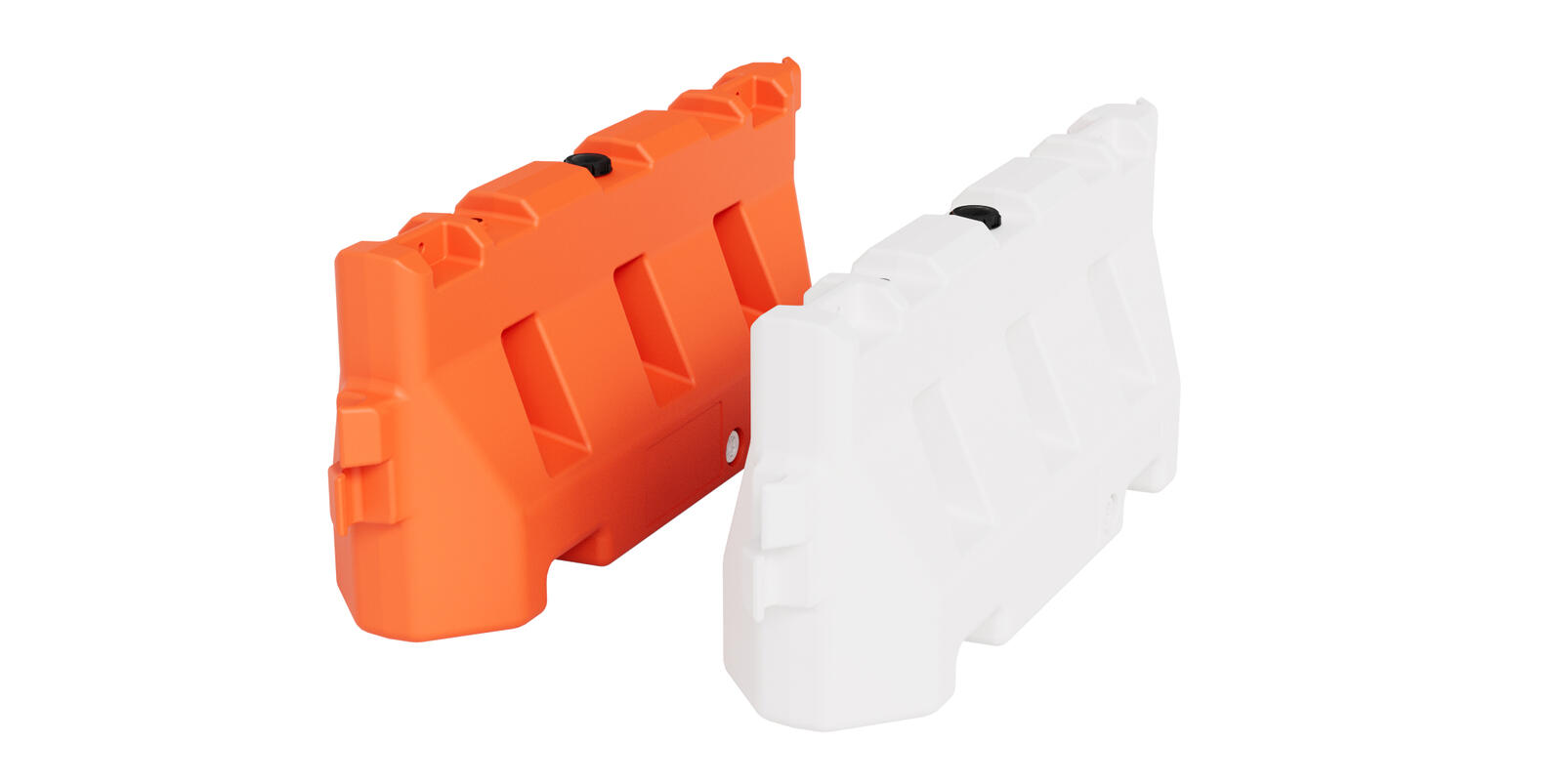

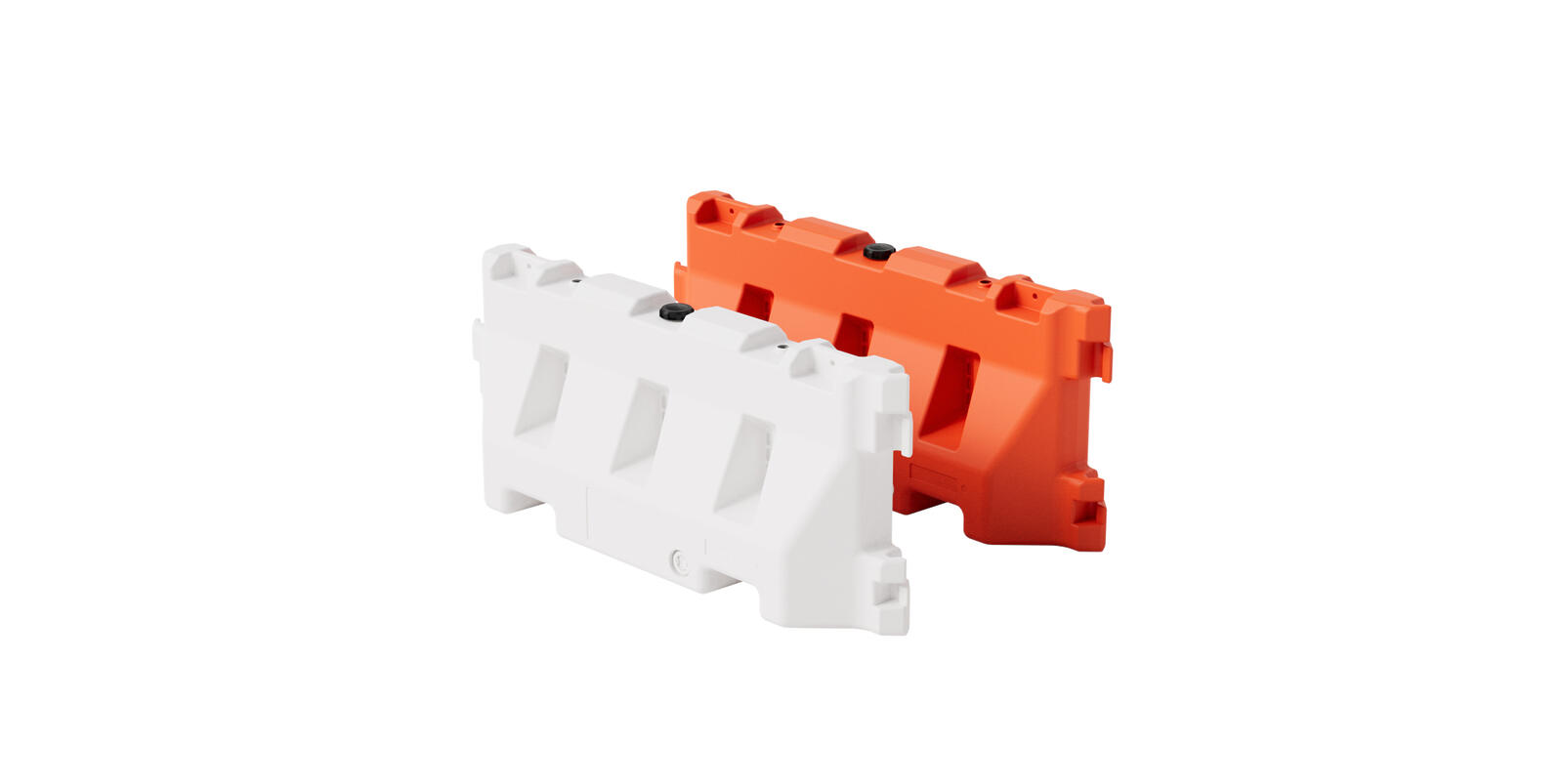

COLORS

Orange
White

MATERIAL

UV-stabilized HDPE or MDPE
Molded-in color

SIZE

Height: 32 in / 81.3 cm
Length: 72 in / 182.9 cm (Including hinge – 76 in / 193.04 cm)
Width: 18 in / 45.7 cm

WEIGHT

Empty Weight: 65 lb / 29.5 kg
Max Weight: Approximately 820 lb / 372 kg (90 US gal / 340.7 L of water)

CONNECTION & GRADE

Interlocking pin included with every barricade; articulates a full 180° with no additional hardware
Slotted connection allows 3.6 in / 9.1 cm of rise or fall per unit, approximately 3°

FILL & DRAIN

Top center fill neck
Two easily accessible drain necks, front and back

LIGHTING & FENCE

Up to two OTW Type A/C Bi-Directional Barricade Lights, mount at the molded points on both ends
Compatible with the OTW Barricade Fence Panel
Works with OTW Vehicle & Pedestrian Gate Kits

HANDLING & SHIPPING

One-person handling when empty; forklift compatible
168 units per truckload; pallet 97 in x 77 in x 101 in

WARRANTY & ORIGIN

One-year manufacturing defect warranty
Made in the USA

PROCUREMENT & SHIPPING DETAILS

Manufacturer-Direct, With 60-Day Price Certainty

You buy from the company that makes the product, and every OTW quote includes a 60-day price lock on both product and freight. With guaranteed pricing for 60 days, your budget isn’t a moving target – plan the project with confidence.

Same-Business-Day Quote Guarantee

Time is money on the jobsite. Submit your quote request by 4:00 PM Mountain Time and we will have a formal quote in your inbox the same business day for national orders. Requests after 4:00 PM are prioritized first thing the next business day.

No Minimum Order

We love to service the smaller companies and the mission-critical super scalers. Both get the same service whether you order four units or four hundred.

Shipping & Freight

We handle the shipping logistics; you prepare for delivery. Your quote includes a comprehensive outline of your requested products and a freight estimate optimized for your delivery window. Purchasing for an international project? Please expect 2–3 business days for your freight estimate.

Preorder the OTW 32×72 now – request a quote to reserve your units and lock in pricing for 60 days.

Made in the USA · Same-business-day quotes · 60-day price lock · No minimum order · One-year limited warranty

Downloads

OTW 32" X 72" WATER-FILLED CONSTRUCTION BARRICADE

OTW products are manufactured at multiple facilities throughout the United States. Due to differences in raw material lots and manufacturing processes, slight variations in color, shade, or appearance may occur between production runs. These variations do not affect product performance or quality and are not considered manufacturing defects.
